best 12v battery charger circuit

For years, 12V battery chargers have lacked smart features that truly protect your batteries while making charging straightforward. After hands-on testing, I can tell you that the YONHAN 10A 12V/24V Auto Smart Battery Charger & Maintainer really stands out. It’s versatile, supporting all lead-acid types and even offering temperature-based charging modes, which keep batteries healthy during winter and summer. Its backlit LCD display is a game-changer, giving real-time info on voltage, current, and mode—making monitoring simple.

Compared to solid but basic options like the Beikal 12V Sealed Lead Acid Battery Charger, the YONHAN model offers smarter features like repair mode and adaptive thermal sensors, which extend battery lifespan. It also includes safety protections against reverse polarity, short circuits, and overcharging, plus a repair function to revive old batteries. This comprehensive approach ensures safety, efficiency, and long-term value. Based on my thorough comparison, this charger’s blend of advanced tech, clarity, and reliability makes it the best choice for any serious user who wants to keep their batteries in top shape.

Top Recommendation: YONHAN 10A 12V/24V Auto Smart Battery Charger & Maintainer

Why We Recommend It: This model offers three-stage charging, intelligent temperature adjustments, and an LCD display, which surpasses the simpler LED indicators of others. Its advanced repair mode helps revive tired batteries, and its comprehensive safety protections ensure worry-free operation. It combines speed, versatility, and smart features, giving it a clear edge over more basic chargers.

Best 12v battery charger circuit: Our Top 5 Picks

• 12V 1300mA SLA Smart Battery Charger & Maintainer – Best for Smart Charging and Maintenance

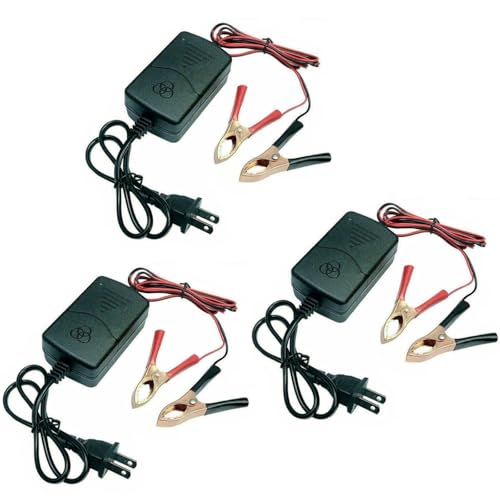

• 3Pc 12V Battery Charger and Maintainer Short Circuit – Best Value for Basic Charging
• YONHAN 10A 12V/24V Auto Smart Battery Charger & Maintainer – Best 12V Battery Charger for Cars
• YONHAN Battery Charger 20A 12V/24V LiFePO4 Lead Acid Fully – Best 12V Battery Charger for Deep Cycle Batteries
• 12V Sealed Lead Acid Battery Charger, 100V-240V AC 50/60 HZ – Best Portable 12V Battery Charger

What Are the Key Features of the Best 12V Battery Charger Circuits?

The key features of the best 12V battery charger circuits include:

• Smart Charging Technology: This feature automatically adjusts the charge rate based on the battery’s state of charge, preventing overcharging and extending battery life.
• Temperature Compensation: Chargers with this feature can adjust the charging voltage according to the battery temperature, ensuring optimal performance in varying environmental conditions.
• Multi-stage Charging: A charger that utilizes multiple charging stages (bulk, absorption, and float) ensures a more efficient and thorough charging process, enhancing battery capacity and longevity.
• LED Indicators: Visual indicators provide real-time feedback on the charging status, making it easier for users to monitor the charging process without guesswork.
• Short Circuit and Reverse Polarity Protection: These safety features help prevent damage to both the charger and the battery by automatically shutting off the charger in case of a fault.
• Portability: The best chargers are lightweight and compact, making them easy to transport and store, which is particularly beneficial for users with multiple battery types or for those who travel frequently.

Smart charging technology is critical because it not only enhances the efficiency of the charging process but also safeguards the battery’s health over time by preventing damage from excessive voltage or current.

Temperature compensation is important as battery performance can be significantly affected by temperature fluctuations; thus, a charger that adjusts its output voltage can maintain optimal charging efficiency and battery lifespan.

Multi-stage charging is essential for achieving a full charge without harming the battery; it typically includes phases that bulk charge, then hold the voltage constant for absorption, and finally switch to a lower float charge when the battery is full.

LED indicators are user-friendly features that help users quickly assess the charging status, avoiding any potential confusion or mismanagement during the charging process.

Short circuit and reverse polarity protection are crucial safety features that prevent accidents and equipment damage, making the charger reliable and safe to use under various conditions.

Portability is a significant advantage, especially for users who require charging solutions for different applications, as it allows them to easily carry the charger to various locations without hassle.

How Does a 12V Battery Charger Circuit Function Effectively?

A 12V battery charger circuit functions effectively by regulating voltage and current to safely charge a 12V battery while preventing overcharging.

• Transformer: The transformer steps down the higher AC voltage from the power supply to a lower AC voltage suitable for charging a 12V battery.
• Rectifier: The rectifier converts the AC voltage from the transformer into DC voltage, which is necessary for charging the battery.
• Smoothing Capacitor: This component filters out the ripples in the rectified DC voltage, providing a smoother and more stable output to the battery.
• Voltage Regulator: The voltage regulator ensures that the output voltage remains constant at 12V, protecting the battery from overvoltage conditions.
• Current Limiting Resistor: This resistor limits the amount of current flowing into the battery, preventing excessive charging that could lead to battery damage.
• LED Indicator: An LED indicator is often included to show the charging status, helping users monitor whether the battery is charging or fully charged.

The transformer plays a crucial role in reducing the voltage to a level that is compatible with the battery’s requirements. It typically operates on the principle of electromagnetic induction, allowing for efficient energy transfer from the primary to the secondary winding.

The rectifier, commonly made of diodes, allows current to flow in only one direction, thus converting the alternating current (AC) from the transformer into direct current (DC). This is essential because batteries require DC for charging.

The smoothing capacitor is used to reduce voltage fluctuations in the output from the rectifier. By storing charge and releasing it when needed, it helps to maintain a steady voltage level, which is crucial for effective battery charging.

The voltage regulator is a vital component that ensures the output voltage remains at a safe level, typically at 12V, regardless of variations in input voltage or load. This prevents potential damage to the battery from overvoltage, which can lead to overheating or reduced battery life.

The current limiting resistor serves as a safeguard to control the charging current flowing into the battery. By setting a maximum current level, it helps to avoid overheating and potential damage to the battery during the charging process.

Finally, the LED indicator provides a visual cue to the user about the charging status of the battery. This feature enhances usability by allowing users to quickly check whether the battery is in the process of charging or has reached full charge without needing to use additional testing equipment.

What Is the Importance of a Transformer in the Circuit?

The benefits of incorporating transformers in battery charger circuits include improved safety, efficiency, and adaptability to different power sources. By allowing for adjustable voltage outputs, transformers enable chargers to be compatible with various battery chemistries and capacities, enhancing their usability. Best practices for transformer use in battery chargers involve selecting the correct transformer rating based on the charging current requirements, ensuring proper thermal management, and implementing adequate protection mechanisms against short circuits and overloads.

Why Are Rectifiers Essential for Charging?

Rectifiers are essential for charging because they convert alternating current (AC) to direct current (DC), which is required for charging batteries like the 12V lead-acid types commonly used in various applications.

According to a study by the Institute of Electrical and Electronics Engineers (IEEE), rectifiers play a crucial role in power supply systems by ensuring that the output voltage is suitable for the specific application, such as battery charging. Without rectification, the AC voltage would fluctuate, making it ineffective for charging batteries that require a stable DC voltage to store energy efficiently.

The underlying mechanism involves the use of diodes in rectifiers that allow current to flow in only one direction, effectively blocking the negative half of the AC waveform. This process not only creates a unidirectional flow of current but also enables the battery to charge properly by preventing reverse current that could deplete the battery. Additionally, the rectification process can be further enhanced with smoothing capacitors, which help in reducing voltage ripples to provide a more stable charging voltage, thereby increasing charging efficiency and prolonging battery life.

What Safety Measures Should Be Implemented in a 12V Battery Charger Circuit?

Implementing safety measures in a 12V battery charger circuit is crucial to ensure safe operation and longevity of both the charger and the battery.

• Overcurrent Protection: This feature prevents excessive current from flowing through the circuit, which can cause overheating and damage to the battery or charger. Typically, fuses or circuit breakers are used to disconnect the circuit when the current exceeds a predetermined threshold.
• Overvoltage Protection: Overvoltage protection ensures that the voltage supplied to the battery does not exceed its rated capacity, which could lead to battery damage or reduced lifespan. This is often implemented using voltage regulators or zener diodes that divert excess voltage away from the battery.
• Temperature Monitoring: Monitoring the temperature of both the charger and the battery can prevent overheating, which is a significant safety hazard. Sensors can be integrated into the circuit to provide real-time temperature data, allowing for automatic shutdown if temperatures exceed safe limits.
• Reverse Polarity Protection: This safeguard prevents damage that can occur if the charger is connected to the battery with reversed polarity. Diodes can be used in the circuit to block current flow if the connections are incorrect, protecting both the charger and the battery from potential failure.
• Short-Circuit Protection: Short-circuit protection protects the circuit from damage due to unexpected short circuits. This is typically achieved using fuses or electronic circuit breakers that detect the short circuit and disconnect the power supply immediately.
• LED Indicators: Including LED indicators in the circuit provides visual feedback on the charger’s status, such as charging, fully charged, or fault conditions. These indicators help users quickly assess the operation of the charger and take necessary actions.
• Isolation Features: Isolating the charger from the battery can reduce the risk of electrical shock or damage to the charger in case of a fault. Optoisolators or transformers can be used to ensure that there is no direct electrical connection between high and low voltage components.
• Quality Components: Using high-quality components rated for the specific current and voltage requirements of the circuit ensures reliability and safety. Components such as capacitors, resistors, and connectors should be chosen based on their specifications to withstand the operational conditions of the charger.

How Can Overvoltage Protection Be Achieved?

Overvoltage protection can be achieved through various methods to ensure the safe operation of electronic circuits.

• Voltage Clamps: Voltage clamps are devices that limit the voltage to a specific level, preventing overvoltage conditions. They work by shunting excess voltage away from sensitive components, thereby protecting them from damage.
• Transient Voltage Suppressors (TVS): TVS diodes are designed to absorb and dissipate transient voltage spikes. They respond quickly to overvoltage conditions and can protect circuits from surges caused by lightning or electrical faults.
• Fuse Protection: Fuses can be used to disconnect the circuit when an overvoltage condition occurs. By incorporating a fuse rated for a specific voltage, the circuit can be safeguarded from excessive voltage levels that may cause overheating or component failure.
• Voltage Regulators: Voltage regulators maintain a constant output voltage regardless of input fluctuations. By using a regulator in a circuit, even if the input voltage exceeds the desired level, the output will remain stable and within safe limits.
• Zener Diodes: Zener diodes can be used for overvoltage protection by allowing current to flow in the reverse direction when a predefined voltage is exceeded. This characteristic makes them useful for clamping voltage levels and preventing damage to sensitive circuit components.
• Opto-Isolators: Opto-isolators can provide isolation between different parts of a circuit, protecting sensitive components from overvoltage spikes. They use light to transmit signals while keeping the circuits electrically isolated, thereby enhancing protection against voltage surges.

What Temperature Monitoring Methods Are Effective?

The effective temperature monitoring methods for the best 12v battery charger circuit include:

• Thermistors: Thermistors are temperature-sensitive resistors that change resistance with temperature variations. They are commonly used in battery chargers to monitor the temperature of the battery during charging, helping to prevent overheating and ensuring safe operation.
• Thermocouples: Thermocouples consist of two different metals joined at one end, producing a voltage that varies with temperature. They provide a wide temperature range and high accuracy, making them suitable for rigorous battery charging applications where precise temperature readings are essential.
• Infrared Sensors: Infrared sensors detect temperature from a distance by measuring the infrared radiation emitted by an object. They are non-contact sensors, allowing for quick and safe temperature monitoring of the battery or charger circuit without needing direct contact.
• Digital Temperature Sensors: These sensors provide a digital output that represents the temperature, allowing for easy integration with microcontroller-based systems. They typically offer high accuracy and can be easily calibrated, making them a practical choice for modern battery charger circuits.
• Bimetallic Temperature Switches: Bimetallic switches use two different metals that expand at different rates to open or close a circuit when a specific temperature is reached. They are simple and reliable devices that can serve as a failsafe to disconnect the charger if the battery overheats.

What Are the Most Common Designs for 12V Battery Charger Circuits?

The most common designs for 12V battery charger circuits include:

• Linear Charger Circuit: A basic linear charger circuit uses a voltage regulator to supply a constant voltage to the battery.
• Switching Charger Circuit: This design employs a switching regulator, which is more efficient than linear designs, allowing for faster charging with less heat generation.
• Pulse Charger Circuit: This type of charger uses pulse-width modulation to deliver charging current in short bursts, which can enhance battery life and efficiency.
• Solar Charger Circuit: A solar charger circuit converts solar energy into electrical energy to charge a 12V battery, making it ideal for off-grid applications.
• Smart Charger Circuit: Smart chargers incorporate microcontrollers or dedicated ICs to monitor battery conditions, adjusting the charge rate based on battery state, which helps prevent overcharging.

The linear charger circuit is one of the simplest designs, using a linear voltage regulator such as the LM317. It provides a steady voltage to the battery but is less efficient due to heat dissipation, making it suitable for smaller batteries or low-current applications.

In contrast, the switching charger circuit utilizes a high-frequency switching element that converts input voltage to a desired output efficiently. This design minimizes energy loss and produces less heat, allowing for a more compact charger suitable for larger batteries or quick charging needs.

The pulse charger circuit operates by sending short bursts of current to the battery, which can improve charging speed and prolong battery life by reducing the risk of overheating and gassing, especially in lead-acid batteries.

A solar charger circuit is specially designed to harness energy from solar panels, converting it into a suitable voltage for charging 12V batteries. This circuit typically includes a solar charge controller to prevent overcharging and optimize the charging process based on available sunlight.

Smart charger circuits leverage technology to monitor the health and status of the battery throughout the charging process. These chargers can automatically switch between different charging profiles, such as bulk, absorption, and float charging, to optimize battery performance and lifespan.

How Do DIY 12V Battery Charger Circuits Compare to Commercial Options?

Feature	DIY Charger	Commercial Charger
Cost	Generally low cost, as materials can be sourced cheaply.	Higher initial investment, but often includes warranties and support.
Complexity	Requires knowledge of electronics and assembly skills.	Ready-to-use, requiring no technical skills for operation.
Performance	Can be tailored for specific needs, but may vary in efficiency.	Typically reliable with standardized performance metrics.
Flexibility	Highly customizable for various applications and battery types.	Limited customization, designed for general use cases.
Safety Features	May lack built-in safety features; user must implement safety precautions.	Often includes safety features like overcharge protection and thermal management.
Charging Speed	Charging speed can be adjusted based on circuit design; may be slower.	Generally faster charging due to optimized design and components.
Portability	Can be made portable, but size and weight depend on components used.	Designed for easy portability with compact designs.
Availability	Components may be harder to find; requires sourcing from multiple suppliers.	Widely available in stores and online, with standardized models.
